PyFast-ADT

modules

main_GUI is just the GUI necessary to setting the microscope and camera adaptor necessary for your experiment.

Two buttons are available:

  • start handpanels; this is a simulator for the handpanel of the microscope to work in remote easier

  • start pyFast-ADT; this is the main GUI to control the 3DED data acquisition (usually the main tab you need)

FAST_ADT_gui this is the GUI of pyFast-ADT, mainly contain only the tkinter UI objects and methods

fast_adt_func collection of the 3DED functions to run PED and cRED experiments and various miscellaneous necessary for the software

beam_calibration this class handle the change in reference space between the electron beam space and the camera space coordinates

handpanels_simulator this class contain the GUI for the hand-panels simulator

The structure of PyFast-ADT

PyFast-ADT is a python software to automate the acquisition of 3DED data using a Custom Electron Microscopy setup. PyFast-ADT is structured in order to be “easily” extended and customized to fit the “current and future” needs of the user.

Abstracting the Microscope and Camera classes (i.e. generally called adaptor) allow the software to be generalized and not be depend on specific hardware. The user can create a new adaptor for a new microscope or camera by inheriting from the base classes Cam_base and Microscope_base and implementing the necessary methods to support is how custom setup by using their APIs. in the following sketch the tree structure of the software is shown to display the relationship between the different adaptor classes and the PyFast-ADT GUI.

alternative text

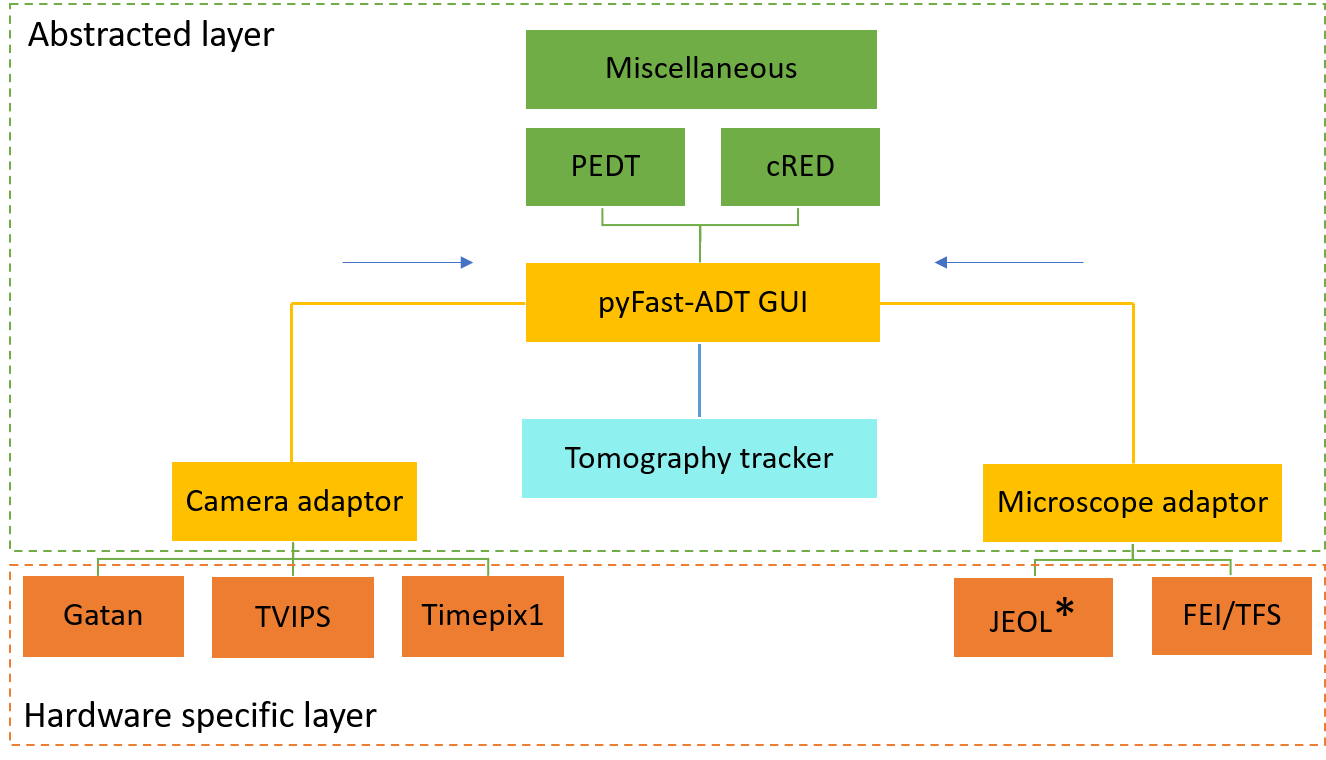

Fig.1 PyFast-ADT abstracted and hardware specific encapsulation layers.
